DRIVE² EFI

SUPREME LUXURY AND STYLE.

Petrol Golf Car



With its powerful, quiet, smooth-running, low-emission EFI engine and

ultra-smooth suspension, the Yamaha Drive² EFI golf car delivers an

amazing level of luxury and a relaxing, peaceful ride.

SUPREME LUXURY AND STYLE.

Powered by an extremely efficient – and therefore very economical – four-stroke engine, the stylish Drive² EFI runs with all the quiet smoothness you would expect from a Yamaha unit and offers a range of other features that help to make it supremely luxurious and relaxing to drive.

With its sophisticated engineering and design, not to mention the unique comfort offered by its independent front suspension, the Drive² EFI leads the field in golf car evolution. That’s why it’s such a firm favourite with players and course operators around the world.

FEATURES

Overall length

2,380 mm

Overall width

1,200 mm

Overall height (sun top)

1,765 mm

Wheel base

1,635 mm

Front wheel tread

890 mm

Rear wheel tread

980 mm

Minimum ground clearance

105 mm

Floor board height

295 mm



Engine type

4-stroke, EFI, OHV, Gasoline

Displacement

357 cm3

Bore x stroke

85 mm x 63 mm

Horsepower

8.63 kW (11.74 hp) @3600rpm

Compression ratio

8.1:1

Lubrication system

Splash-style positive oil lubrication

Oil tank capacity

1 litre

Frame

Automotive style chassis, polyester/urethane powder topcoat

Body

Thermoplastic olefin, 2-part top coat of automotive-grade polyurethane

Steering

Rack and pinion

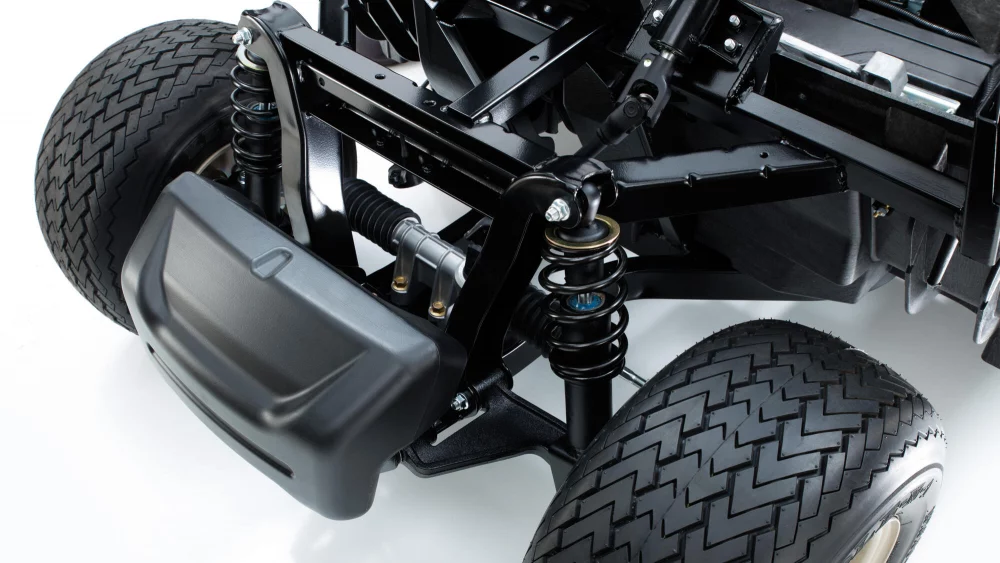

Front suspension

Fully independent automotive-style strut suspension

Rear suspension

Mono-linkage

Brakes

Self adjusting rear drum

Seating

2 persons

Maximum forward speed

24 km/h

Turning radius

2.8 metres

Dry weight

Kerb weight (with suntop, battery): 324 kg

Fuel tank capacity

22 Litres

Tyre size

18 x 8.5 -8 (4 ply rated)

Seating capacity

2 persons

Curb weight ( with sun top, battery, oil and fuel)

324 kg
