UMX EFI

YOUR GOLFERS’ EXPERIENCE JUST GOT AN UPGRADE.

LIGHT UTILITY VEHICLE

If you’re going to do a job, why not do it properly? The tough, hard-working Yamaha UMX EFI is designed to handle a huge range of tasks, indoors or out. With a large cargo bed and spacious front locker, this easy-to-operate utility vehicle is the quick, efficient way to move equipment and supplies.

THE UMX EFI. READY FOR A HARD DAY’S WORK.

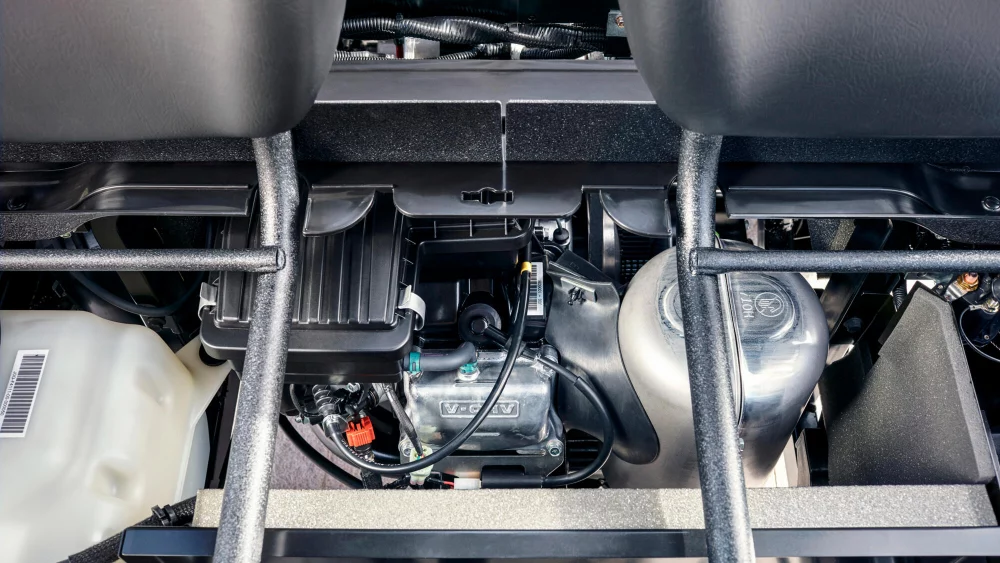

At the heart of this compact workhorse is a well proven, easy-starting and punchy 400cc EFI engine that delivers smooth, efficient power to take it just about anywhere in a park, resort, golf course, farm, airport, factory … just point and go

The two ergonomically designed individual seats and variable rate suspension system work together to give a high standard of rider comfort, making this nimble and easy-to-manoeuvre light utility vehicle a real pleasure to work with – and it’s ready to work hard for you, 24/7.

FEATURES

Overall length

3,032 mm

Overall width

1,253 mm

Overall height (sun top)

1,824 mm

Wheel base

1,961 mm

Front wheel tread

1,023 mm

Rear wheel tread

1.021 mm

Minimum ground clearance

115 mm

Floor board height

332 mm

Engine type

OHV, EFI, 4-stroke, Gasoline

Displacement

402 cm3

Bore x stroke

85.0 mm x 70.8 mm

Horsepower

9.4kW(12.6 hp) @3600rpm

Compression ratio

8.2:1

Lubrication system

Splash-style positive oil lubrication

Oil tank capacity

1.1 litre

Ignition system

TCI

Frame

Automotive style chassis, polyester/urethane powder topcoat

Body

Thermoplastic olefin, 2-part top coat of automotive-grade polyurethane

Steering

Rack and pinion

Front suspension

Strut suspension

Rear suspension

Mono-linkage

Brakes

Self-adjusting, mechanical drum brakes on all 4 wheels

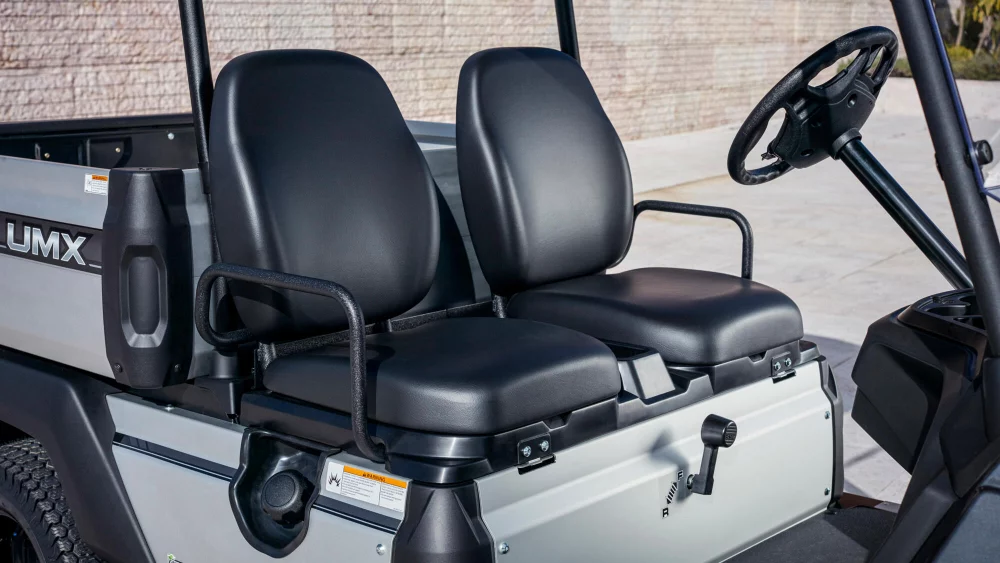

Seating

Bucket seats made of polyurethane foam bonded to a durable vinyl cover

Maximum forward speed

31 km/h

Turning radius

4.0 metres

Dry weight

455.4 kg

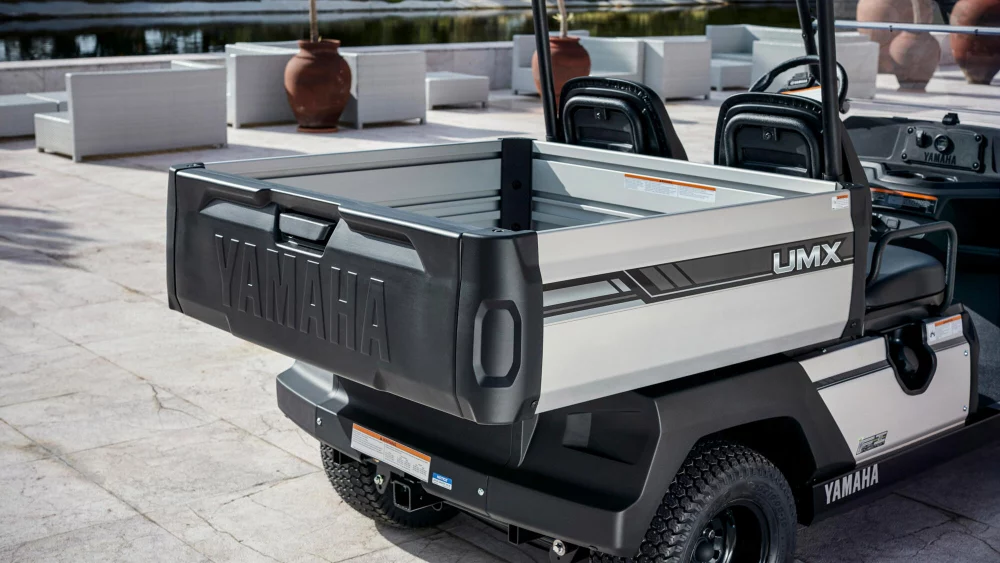

Cargo bed capacity

363 kg

Cargo bed size (LxWxH)

1,046mm x 1,166 mm x 302 mm

Fuel tank capacity

20 litres

Tyre size

20 x 10 -10 (4 ply rated)

Seating capacity

2 persons
